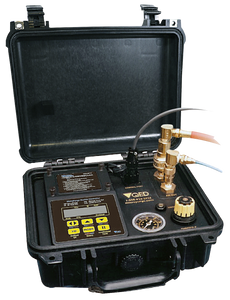

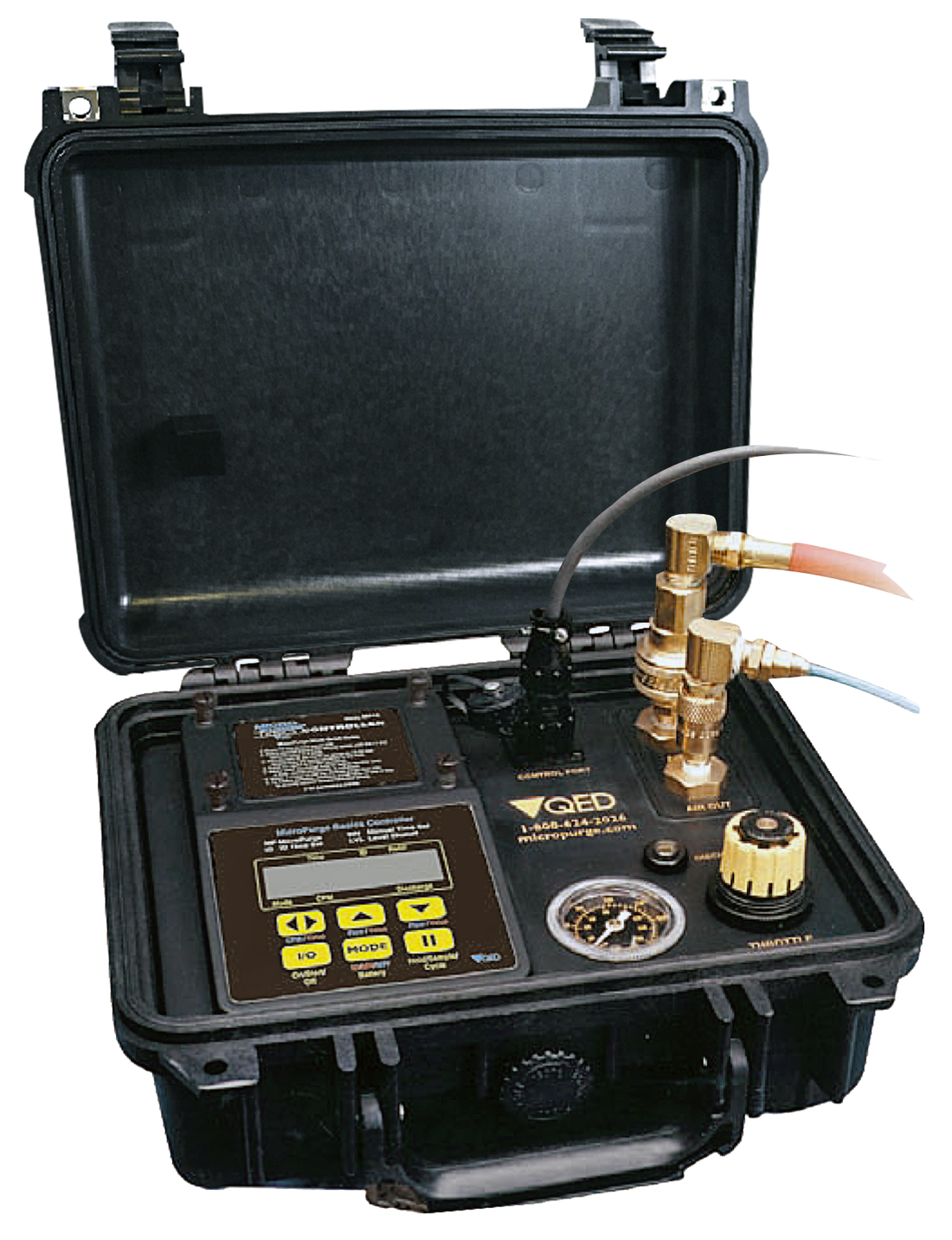

QED Micropurge MP10, MP10H and MP10UH Controller
PFAS Accepted Equipment
Available Models: MP10, MP10H, and MP10UH
The MicroPurge® basics™ MP10 Controller revolutionizes low-flow sampling with advanced logic control of purge flow and well drawdown. Simple up-down arrow keys increase and decrease purge flow, driving a microprocessor to recreate expert techniques for low-flow adjustment. Then, optimized settings are identified for recall in the next round of sampling.
The MicroPurge Controller, MP-10, regulates the gas pressure going into the bladder pump based on the pumping depth. It also controls the purge cycles of the pump. The gas pressure squeezes on the bladder, forcing the water out of the bladder and into the discharge tubing. When the gas pressure is released, the bladder expands and allows water to fill the bladder for another purge.
The MP10 also offers an easy way to prevent excessive monitoring well drawdown during purging by linking to the optional MP30 Drawdown/Water Level Meter.
Features:
MicroPurge Control Mode uses simple arrow keys to adjust low-flow rates
Integrated microprocessor enables users to recreate flow adjustment strategies
Multi-Mode digital control with MicroPurge and ID Mode for repeat events and manual control
Weatherproof controls in a rugged, compact case
Full digital display of all setting and status information
Applications:
Sampling inorganic, organic, and biological groundwater parameters
Groundwater sampling and control
Low flow water sampling
Biogas and biomethane
Environmental remediation
Food and beverage
Landfill gas management
Oil and gas
