Tinker & Razor

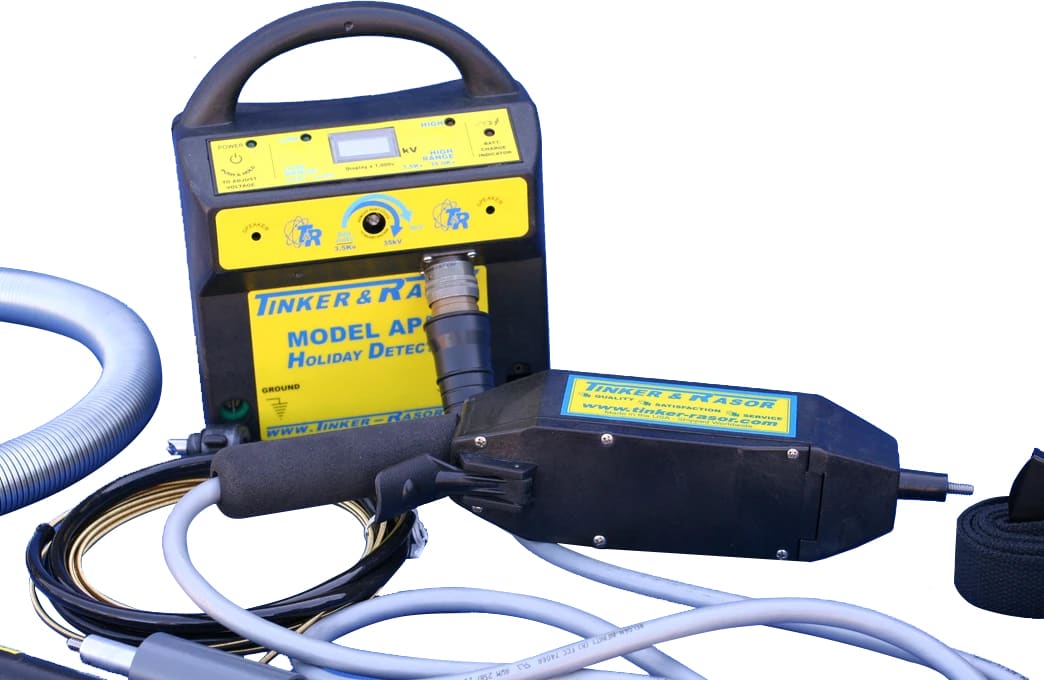

Tinker & Rasor AP/W Holiday Detector
Pine Item #54253
The Tinker & Rasor Model AP/W Holiday Detector is a completely transistorized, portable electrical inspection instrument. Adaptable for use on both large and small diameter piping as well as flat surfaces when such surfaces are coated with a high electrical resistant material and the surface beneath the coating is electrically conductive.
Features:
800 volts to 35,000 volts in one instrument
Safety cutoff switch
LCD output Meter
Audible & Visual detecting holiday indicators
MIL-SPEC, locking Power-Pak cable
Open, Ergonomic design, reduces user fatigue
Integrated belt loop system
Portable
6v Rechargeable Battery
THREE YEAR WARRANTY
Multiple electrodes available (See Electrodes page for details)
Applications:
Pipelines
Tanks
Concrete
Sewers
Manholes
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
| Battery Type | Rechargeable dry-cell NiCad pack |
| Cable Length | 20 ft (50.8 cm) flexible ground wire |
| Carrying Case | Heavy duty 8.5 x 12.25 x 19.75 in (21.59 x 31.12 x 50.17 cm) |

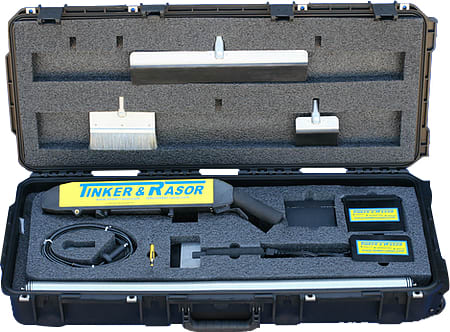

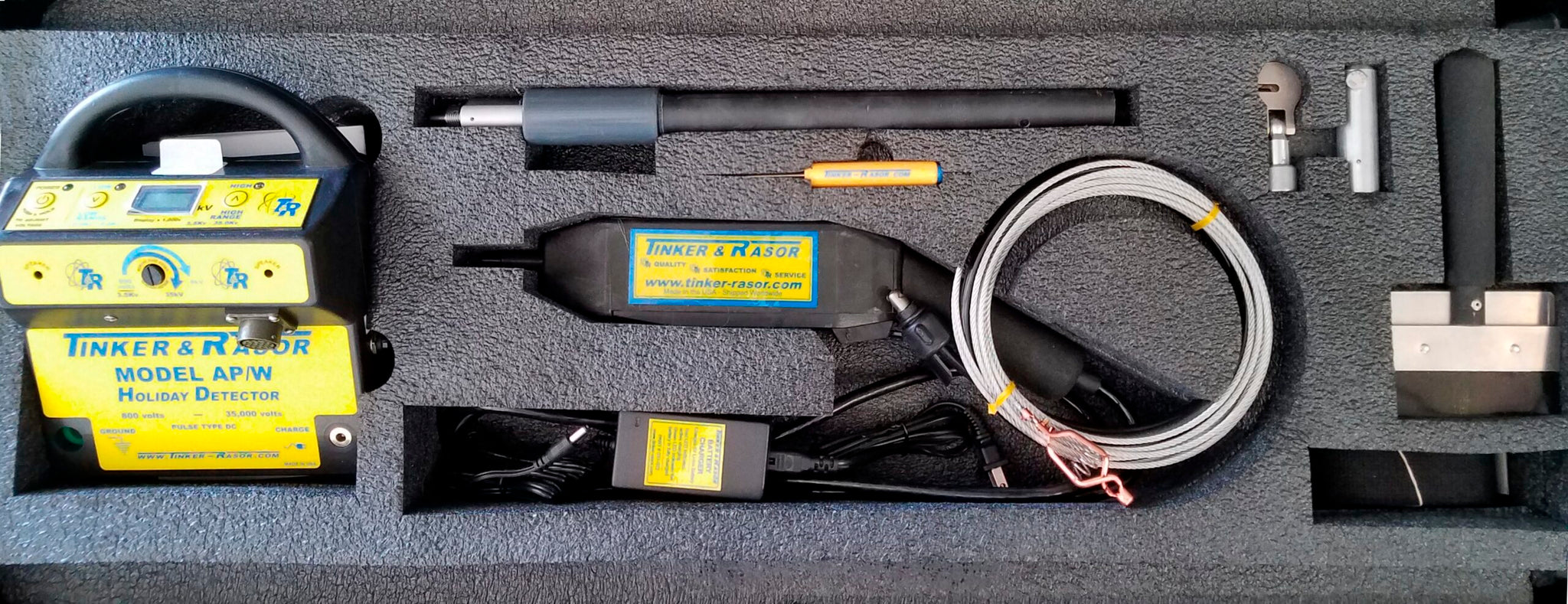

| Standard Accessories | Battery charger High voltage wand Ground lead Carrying case and straps |
