Sensor Networks Hi-Def 4.3 PTZx Camera System
Pine Item #52983

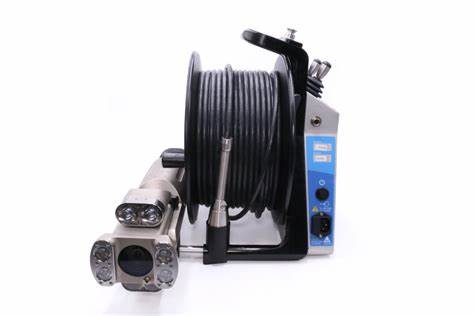

The Hi-Def 4.3 PTZ Camera System by Sensor Networks, Inc. is a rugged, high-definition pan-tilt-zoom visual inspection tool designed for remote visual inspections (RVI) and foreign object search and retrieval (FOSAR) in industrial environments. With its full 1080p resolution, 30x optical zoom, precision maneuverability, and waterproof construction, this system enables users to visually assess hard-to-reach and hazardous areas inside vessels, tanks, headers, and piping systems.
It features an ergonomic, portable design with modular integration, allowing operators to capture vivid imagery in low-light conditions. The camera is submersible to 100 ft (30 m), radiation-tolerant, and capable of continuous 360° pan and up to 135° tilt. Whether for nuclear maintenance, petrochemical plant inspections, or critical infrastructure assessments, the Hi-Def 4.3 PTZ system offers industry-leading clarity, durability, and data capture performance
Industries of Use
Nuclear Power, Oil & Gas, Petrochemical, Fossil Power Generation, Aerospace, Utilities, Environmental Services, Process & Chemical Plants, Water & Wastewater Treatment, and Maritime & Shipping
Benefits
-
Ultra-clear HD imaging for precision inspections
-
Operates in submerged, high-radiation, or confined environments
-
Lightweight and portable design for single-person deployment
-
Simplifies data collection with onboard recording and environmental overlays
-
Reduces downtime with fast visual access to internal components
-

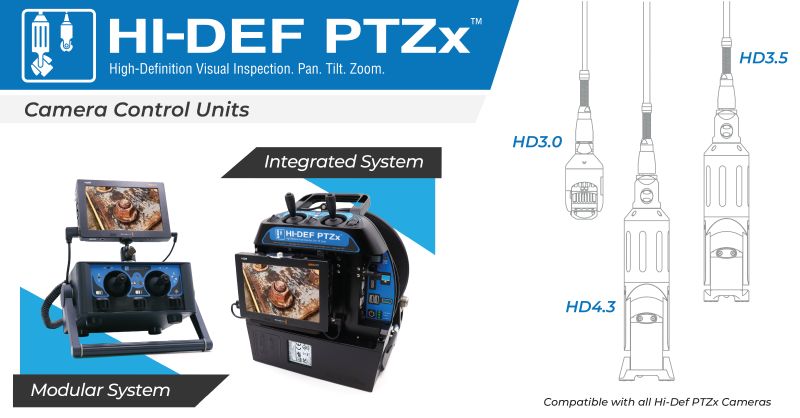

Interchangeable camera heads for application versatility
-
Built for extreme industrial settings with minimal maintenance needs
Features:

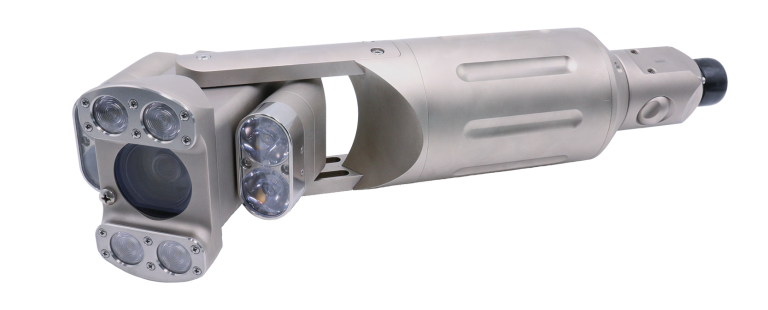

Full HD Imaging with 30x Zoom
Capture detailed visual data with 1920x1080 resolution and 30x optical zoom, ideal for identifying surface flaws, corrosion, and obstructions in challenging environments.
Advanced Pan-Tilt Control
Achieve complete visual coverage with 360° continuous pan and 135° tilt capabilities, all controllable from the handheld monitor or control unit.
High-Intensity Lighting
Integrated dual LED lamps output up to 2,000 lumens, ensuring clear visuals in dark or submerged spaces. Optional auxiliary lighting available.
Portable & Rugged
System weighs under 30 lbs fully loaded with 100 ft cable, monitor, and reel—easy for one person to transport and deploy.
Data-Rich Video Overlays
Live video includes text overlays showing time/date, zoom level, pan/tilt position, and internal temperature, pressure, and humidity for robust documentation.
Radiation & Water Resistant
Designed for radiation environments up to 50,000 RAD and submersion up to 100 ft, making it ideal for nuclear and underwater inspections.
Modular Cable System
Supports up to 550 ft (167 m) of camera cable for deep and extended reach inspections inside plant infrastructure.
Applications:
Reactor pressure vessel inspections
Steam generator channel head & nozzle weld inspections
Fuel pool & spent fuel inspections
Tray tower & baffle plate visual checks
Heat exchanger internals assessment
High-pressure steam header inspections
Underground and above-ground tank evaluations
Vent stack and overhead structure monitoring
Glass-lined and refractory vessel inspections
Foreign object retrieval (FOSAR)
Equipment available for both rental and purchase
Request a Quote
Specifications
Videos
Specifications
| Resolution: | 1920 x 1080 (Full HD) |
| Zoom: | 30x Optical / 12x Digital |
| Pan Range: | 360° Continuous |
| Tilt Range: | ±135° |
| Lighting: | 2,000 Lumens Integrated LEDs (plus auxiliary) |
| Submersible Depth: | Up to 100 ft (30 m) |
| Radiation Tolerance: | 50,000 RAD |
| Operating Temperature: | 14 to 120°F (-10 to 49°C) |
| Cable Length: | 50 ft to 550 ft (15 – 167 m) |
| System Weight: | 27.3 lbs (12.4 kg) |
| Monitor: | 7 in. FHD display, onboard recording in 1080p (ProRes or DNx) |
| Power: | 110–240 VAC; 4 A; 50/60 Hz |
