Ludlum

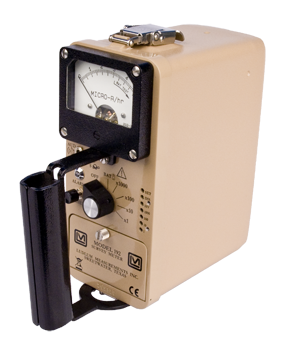

Ludlum 192 Micro Rad Meter
Equipment available for both rental and purchase
Request a Quote
Pine Item #54483
The Ludlum 192 Micro R Meter is a low level (Micro R) gamma meter. It features 4 ranges, auto adjust alarm settings and 2' x 1' sodium iodide (naI) T1 scintillator.
The 192 Micro R Meter's sensitivity typically is 700 cpm/microR/hr (Cs-137 gamma).
This unit is micro-processor based and has total counting range from 0-5,000 µR/hr.
Features:
Reset: Push-button to zero meter and also re-accumulate backround data and recalculate the alarm deviation.
Response: Toggle switch fro FAT (4 seconds) or SLOW (22 seconds) from 10% to 90% of final reading.
Specifications
Manuals, Data Sheets & Software
Videos
Technical Specifications
| Audio | Built in unimorph speaker with ON/OFF switch (greater than 60 dB at 2 feet) |
| Temperature Range | -4°F (-20° C) to 122°F (65°C) |
| Power | 2 each \"D\" cell batteries (housed in sealed compartment that is externally accessible) |
| Meter | 2.5\" (6.4cm) arc 1 mA analog type |
| Battery Life | Typically 600 hours with akaline batteries. Battery conitidion 600 hours with both alka |
Dimension
| US | Metric | |
| Dimensions | 7.8 H x 3.5\" W x 8.5\" L\" | 19.8 cm H x 8.9cm x 21.6 cm L |
Weight
| US | Metric | |
| Weight | 4.5 lbs | 2.1 kg |
