MFE

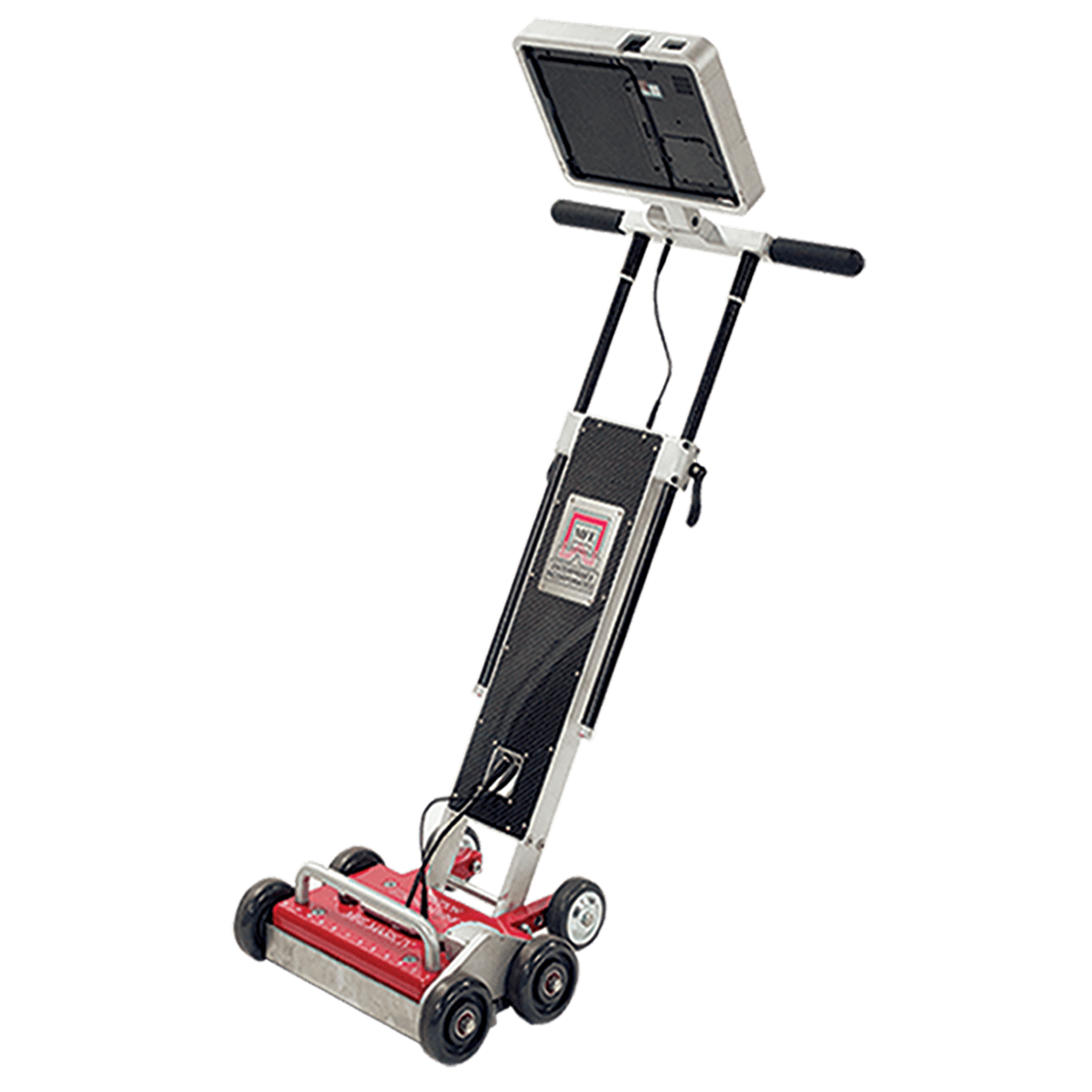

MFE Mark 4 Tank Floor Scanner
Pine Item #56099
The Mark IV takes the precision, reliability, and durability of its predecessors to another level with upgraded, user-friendly software and a lightweight build. Its slim design boasts an unprecedented weight of only 65 lb.
The convenience of using the new Mark IV will be outweighed only by the confidence in its reporting features and ability to discover volume loss in real-time with its true real-time display.
Features:
Manual & Mapping Modes
Fully Integrated Software
True Real-Time Display
Tank Drawing
Analytical & Reporting Features

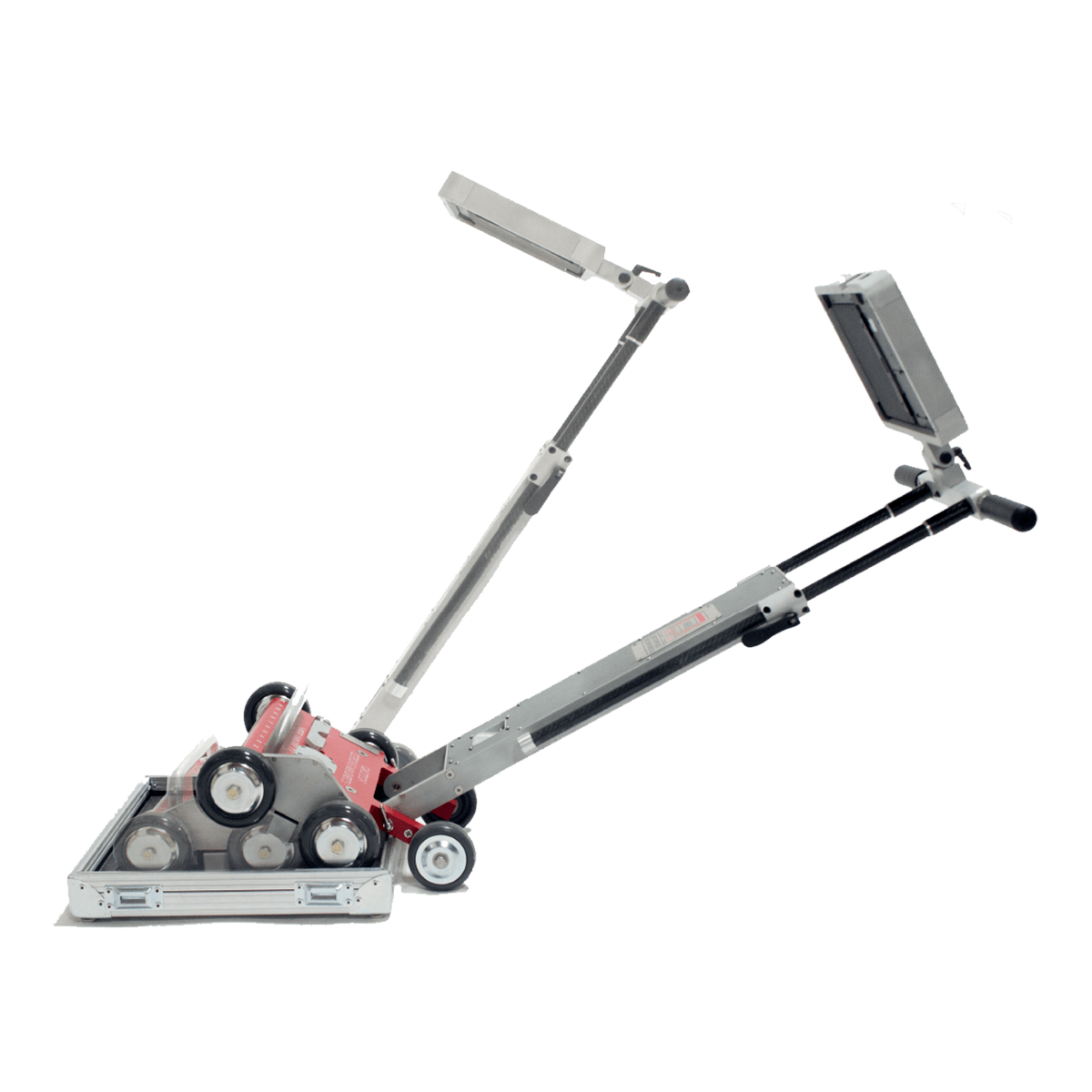

Detachable handle
Fully Adjustable Handle
Advanced Mil-Spec Breakaway Cables
Integrated Electronics
Hot Swappable Batteries
65 lb/30 kg
Applications:

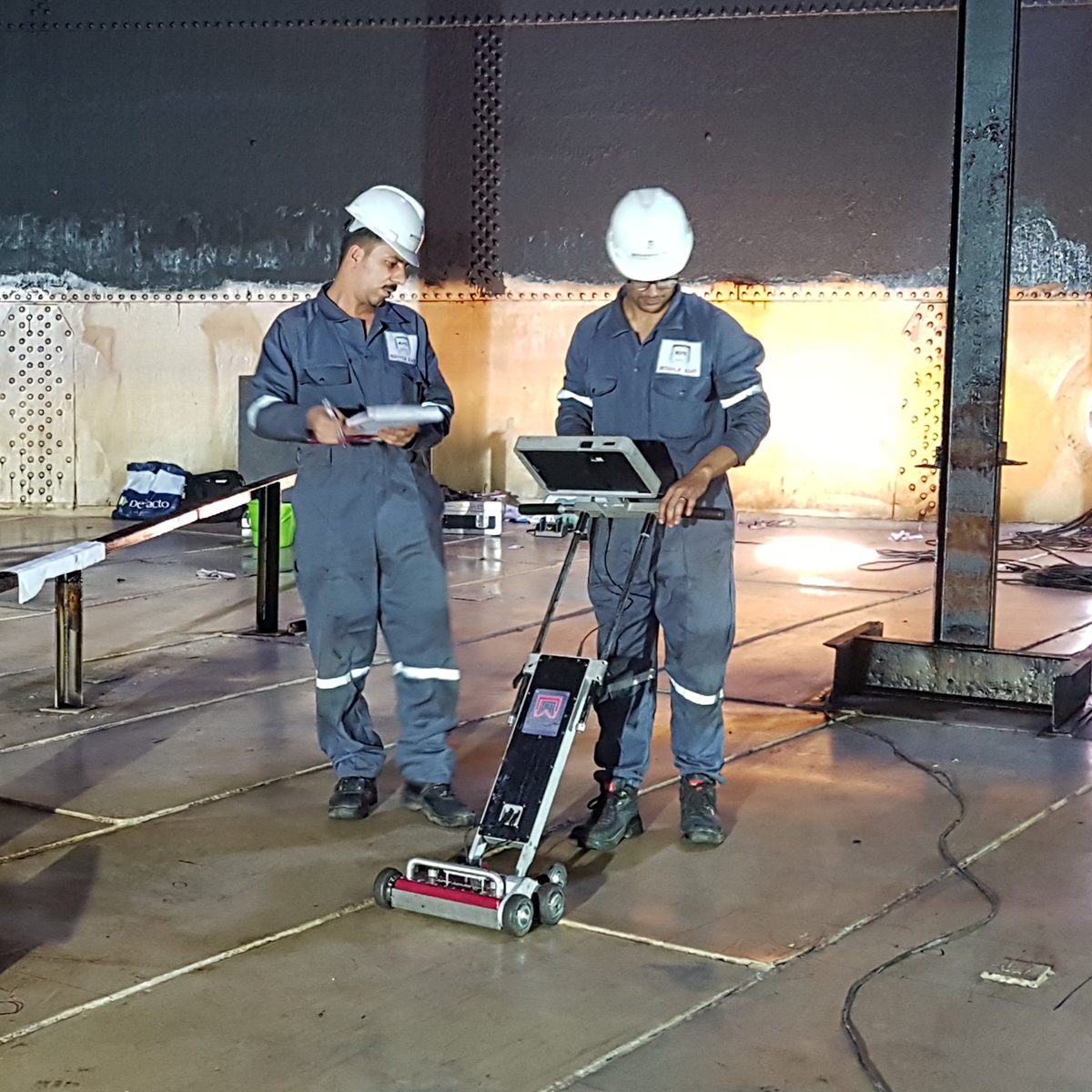

Storage Tank Bottoms/Floors
Storage Tank Roofs
Screening of Annular Plates
Ship Decks
X-Ray & Inspection System
Packaging Inspection & Integrity
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
Videos
| Scan Width | 12 Inches |
| Maximum Single Scan Length | None |
| Speed Tracker | Yes |
| Thickness Range | up to .75"* |
| (*.50" to .75" available with High Flux Bridge Upgrade) | |
| Test through Coatings | Yes, if non-magnetic |
| Max Coating Thickness | Floor Plate and coating up to .75" / 20 mm* |
| Real Time Analysis | Yes, 12 Channels |
| Power Requirements | Hot Swappable Batteries |
| Operation Weight | 65 lb / 30 kg |
