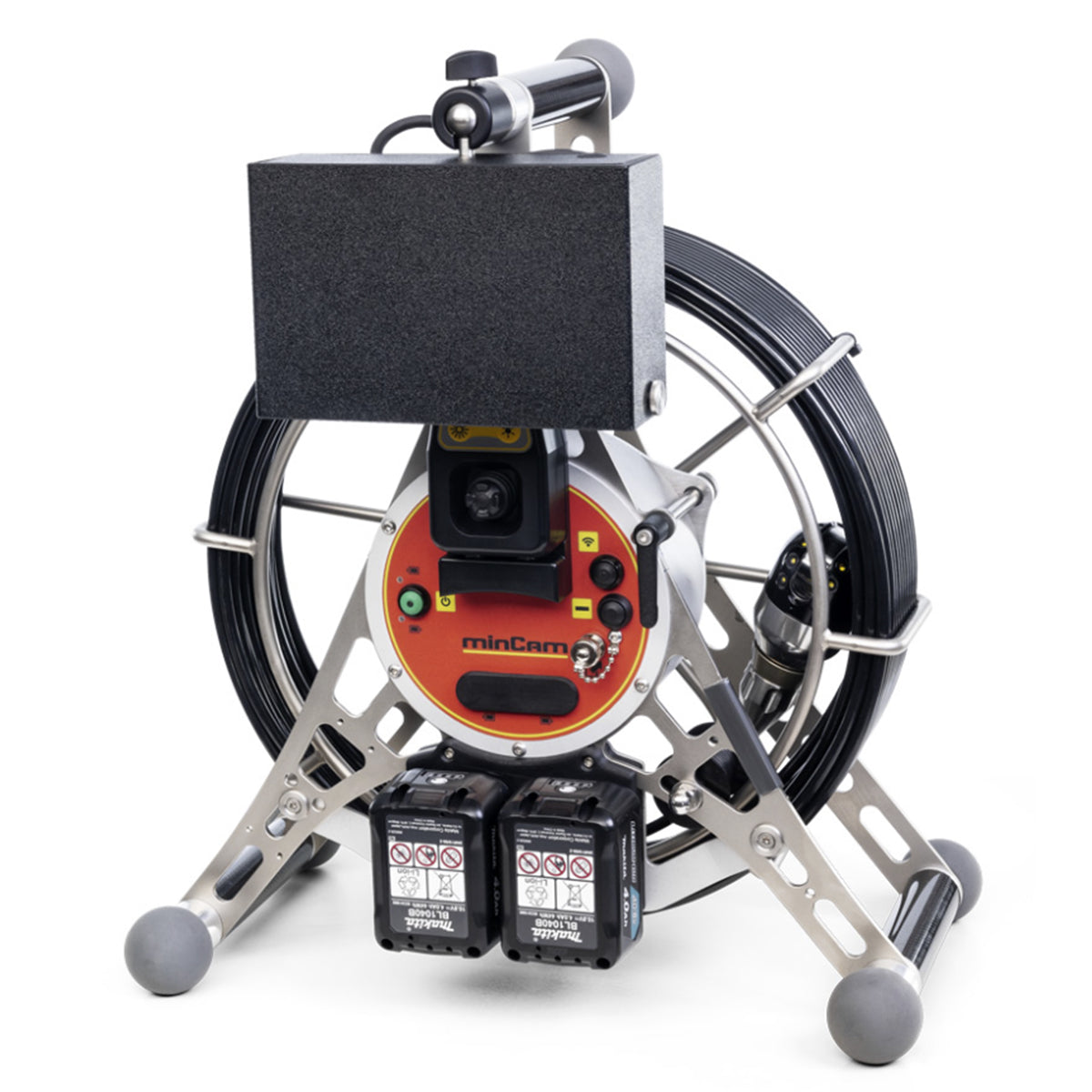

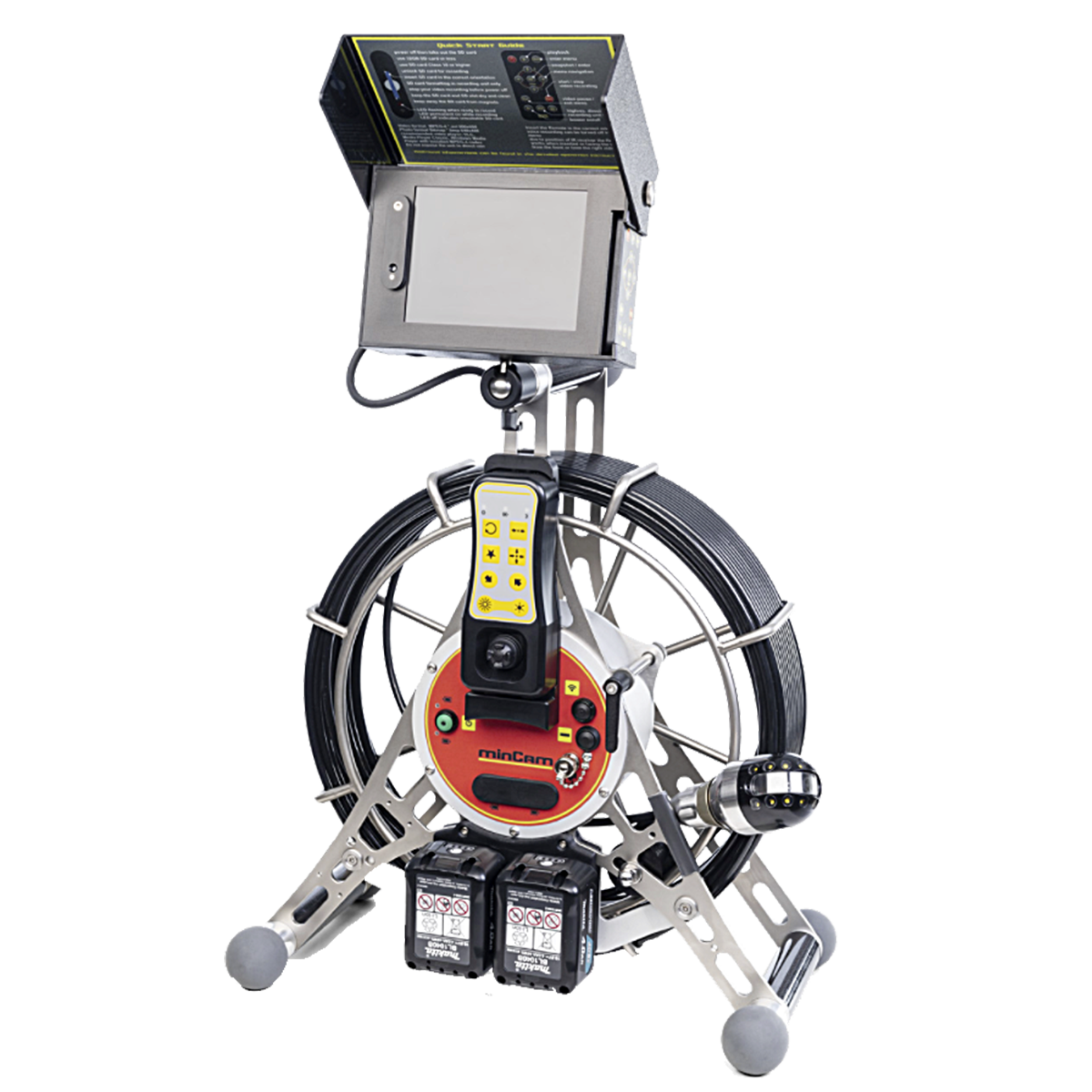

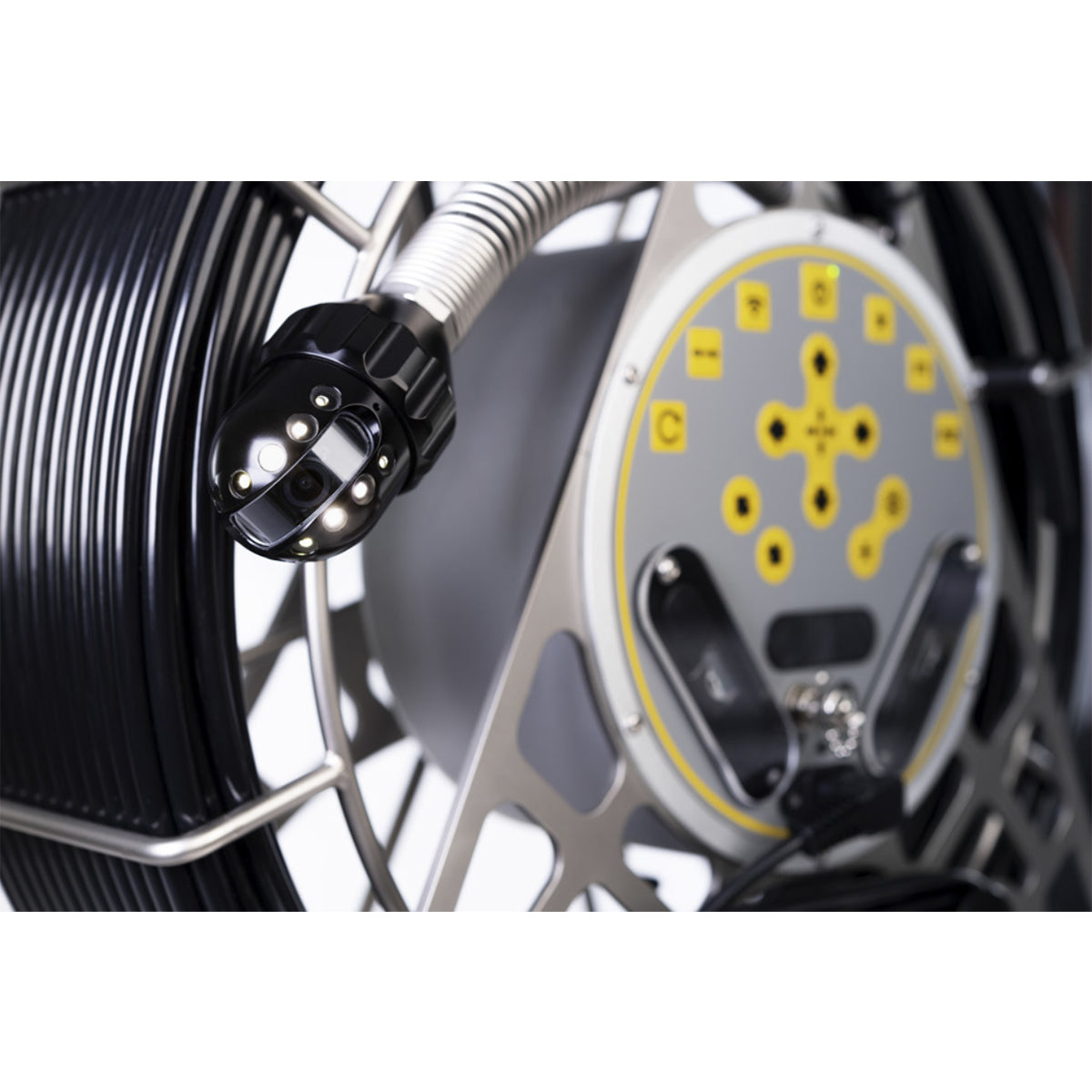

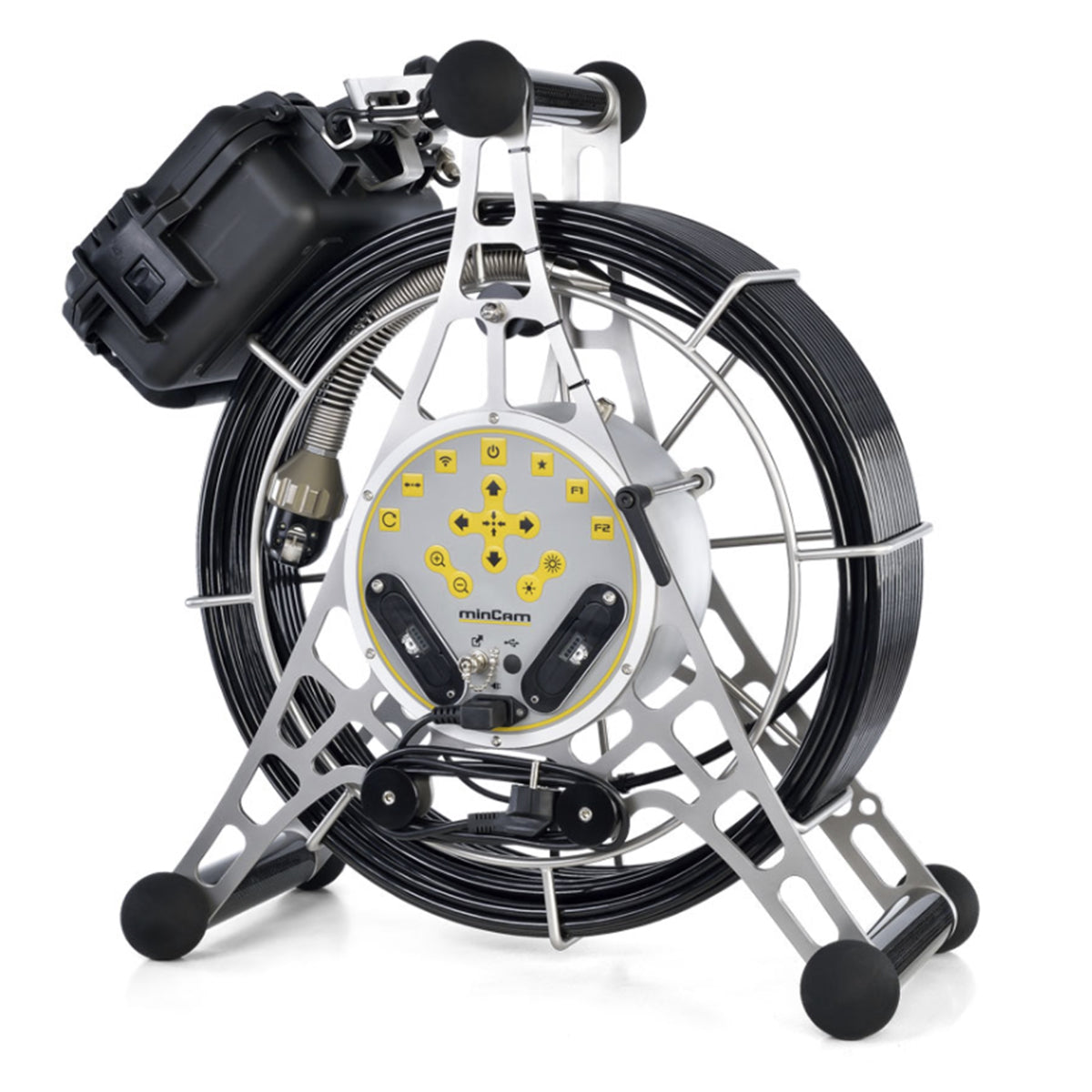

Rausch minCam360 Pan & Tilt Push Camera

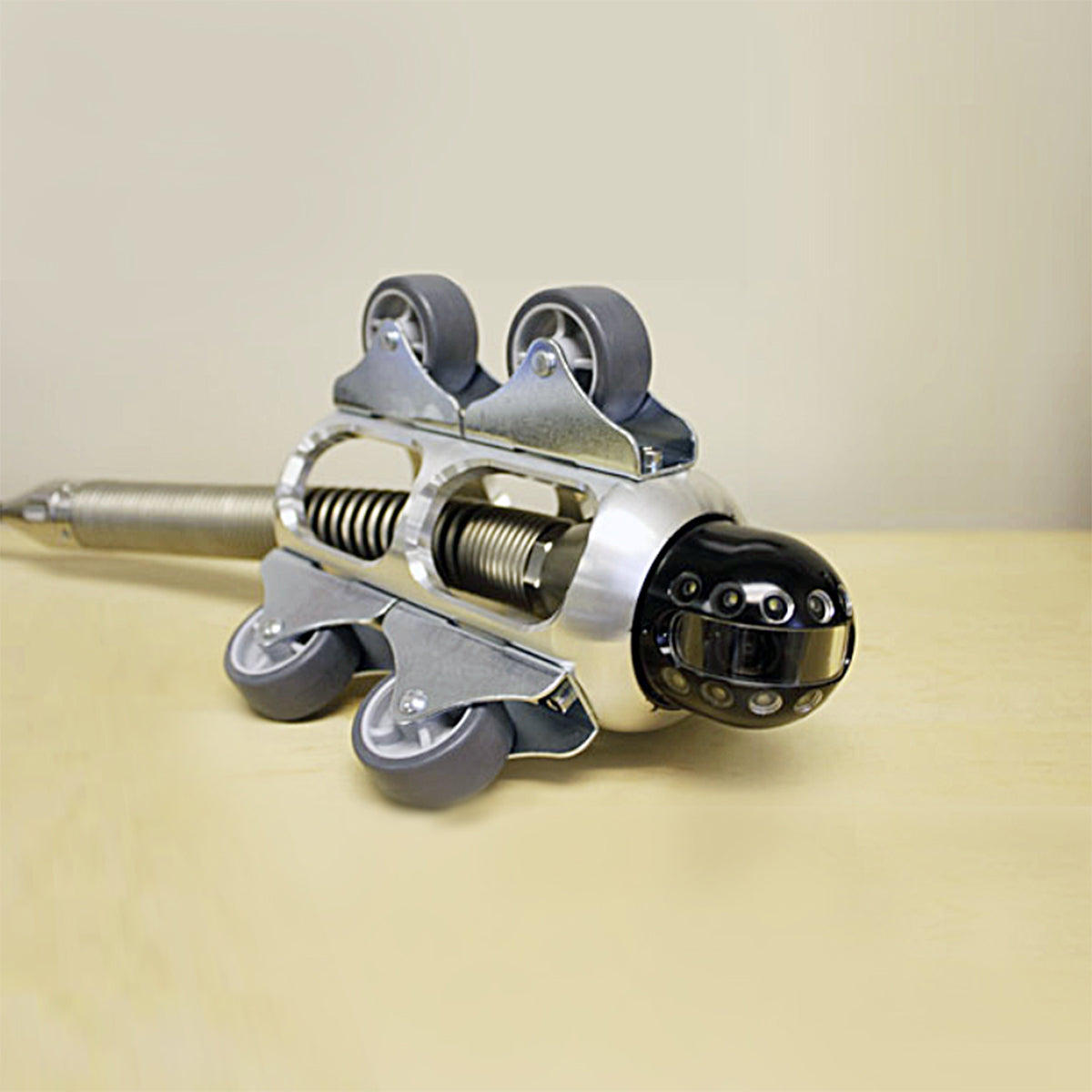

Application Range from 3″ up to 16″ (with All Optional Accessories)
The minCam360 pan & tilt push camera can push through 4” 90° P-Traps and inspect pipe diameters up to 16” with the optional large roller upgrade. It features digital zoom as well as innovative self-adjusting “smart” LED lights. Includes tri-band 512 Hz, 33 kHz, 640 Hz sonde.
Features:
8.4” TFT LCD sunlight readable, records video, audio & photo
Pelican® Storm Case heavy-duty housing
SD card reader, max. 32 GB for approx. 20 hours of video
MPEG-4 Video (.avi, 800×600); Pictures (.bmp 640×480)
Touch button control for recording photos, videos, and file management
Push-to-Talk (PTT) switch for voice note control
Integrated Qwerty keyboard text generator in Pelican case
Applications:
Pipe inspections
Sewer inspections
Water & drain video pipe inspections
Well inspections
Service lines, drains, and empty conduits
Ideal for leak testing, rehabilitation, and pipe cleaning
| Length | 200 ft. (60m) of 9.2mm fiberglass push cable (up to 300 ft.) |
| Includes | Integrated tri-band 512Hz/640Hz/33kHz sonde |
| Monitor Feature | Electronic on-screen distance counter |
| Batteries | 2 removable Lithium Ion batteries for 4 hours operation |
| Power Supply | 100 – 240V AC |
| Material | Lightweight stainless steel & carbon reel cage |
| Reel Feature | Mechanical reel brake |
| Control Unit | On/off switch, light regulation, sonde frequency control, Preset camera macros, BNC video out |

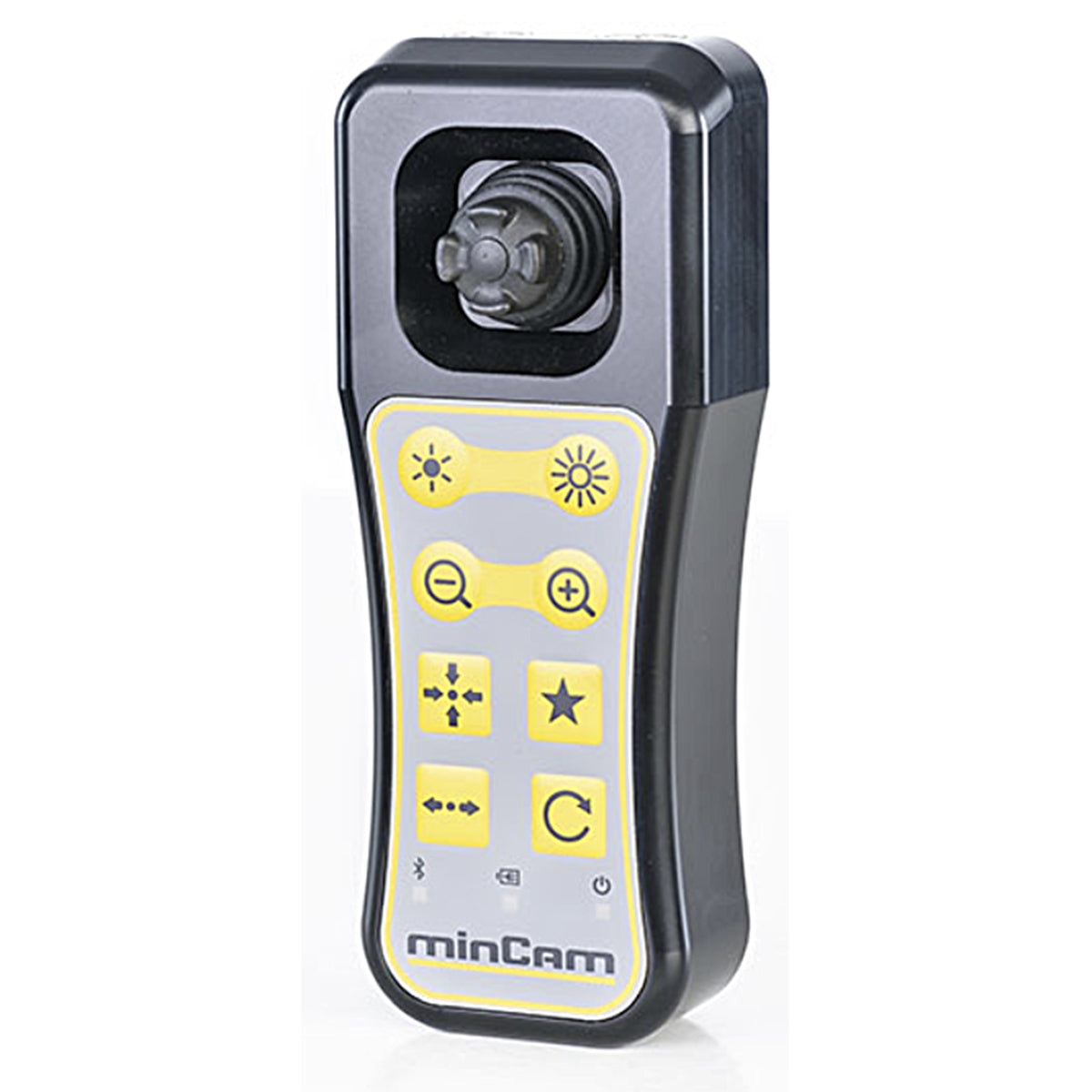

| Remote | Wireless remote control with joystick for pan & tilt, 4-step zoom control, light regulation, preset camera macros |
| Weight | 49 lbs. |
| Dimensions | 23” x 26” x 12” (L x H x W) |

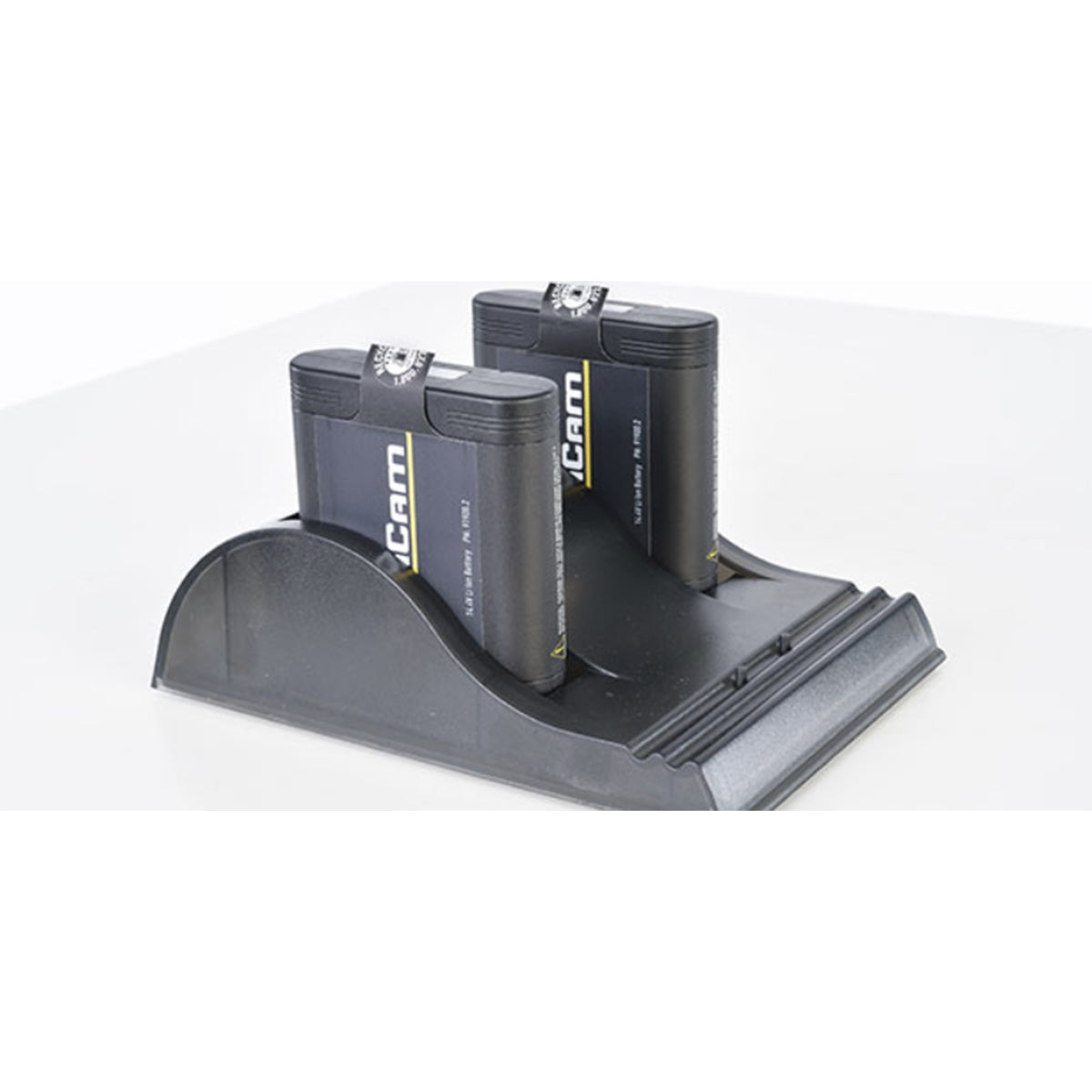

| Optional | External battery charger. |
