RAE Systems

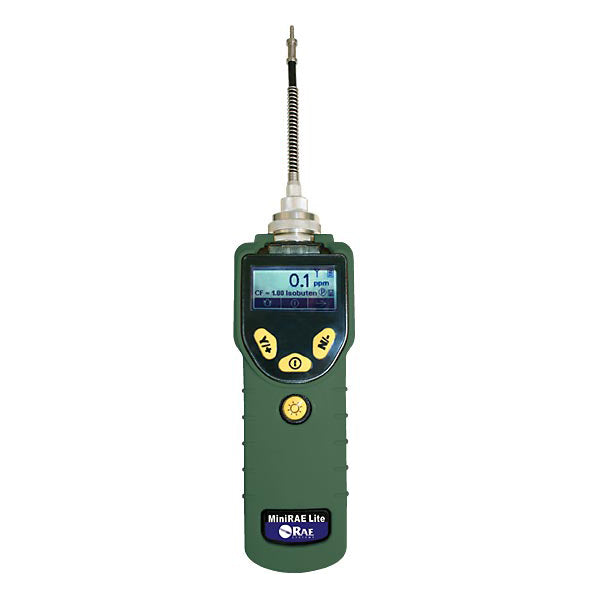

RAE Systems MiniRAE Lite PID
Pine Item #50136
Ideal for simpler VOC detection and monitoring applications, the new MiniRAE Lite from RAE Systems is now available to hire, buy or through our Rent To Own (RTO) and Perpetual Rental Plan (PRP).
Featuring the same lamp as the MiniRAE 3000 and a powerful pump able to draw up to 30m, the MiniRAE Lite is simple to use and robust. Potential applications vary from in-house solvent monitoring and environmental site surveys to construction and Spill Response.
Features:
3-second response time
Humidity compensation
Loud 95dB and red flashing alarm
Range up to 5000ppm
Sampling pump draws up to 30m (vertically & horizontally)
Applications:
Emergency Response
Environmental Cleanups and Remediation
Leak Detection
Hazmat Reponse
Worker Exposure
Venue Protection
Perimeter Monitoring
Equipment available for both rental and purchase
Request a Quote
Specifications
Manuals, Data Sheets & Software
| Sensors: | 10.6eV lamp |
| Range: | 0 to 999ppm (0.1 ppm resolution) 1000 to 5000ppm (1ppm resolution) |
| Response Time: | 3 seconds |
| Sampling Pump: | 400mLmin-1 |
| Readout: | Instantaneous: VOC's as ppm by volume High and Low values Date and Time |
| Keypad: | 1 operation and 2 programming keys 1 flashlight on/off |
| Alarms: | 95dB alarm and flashing red LED |
| IP Rating: | IP-65 |
| Operating Temperature: | -20oC to +50oC |
| Operating Humidity: | 0 to 95% rh (non-condensing) |
| Dimensions | US: 10” x 3” x 2.5” Metric: 255 x 76 x 64mm |
| Weight | US: 26oz Metric: 738g |
