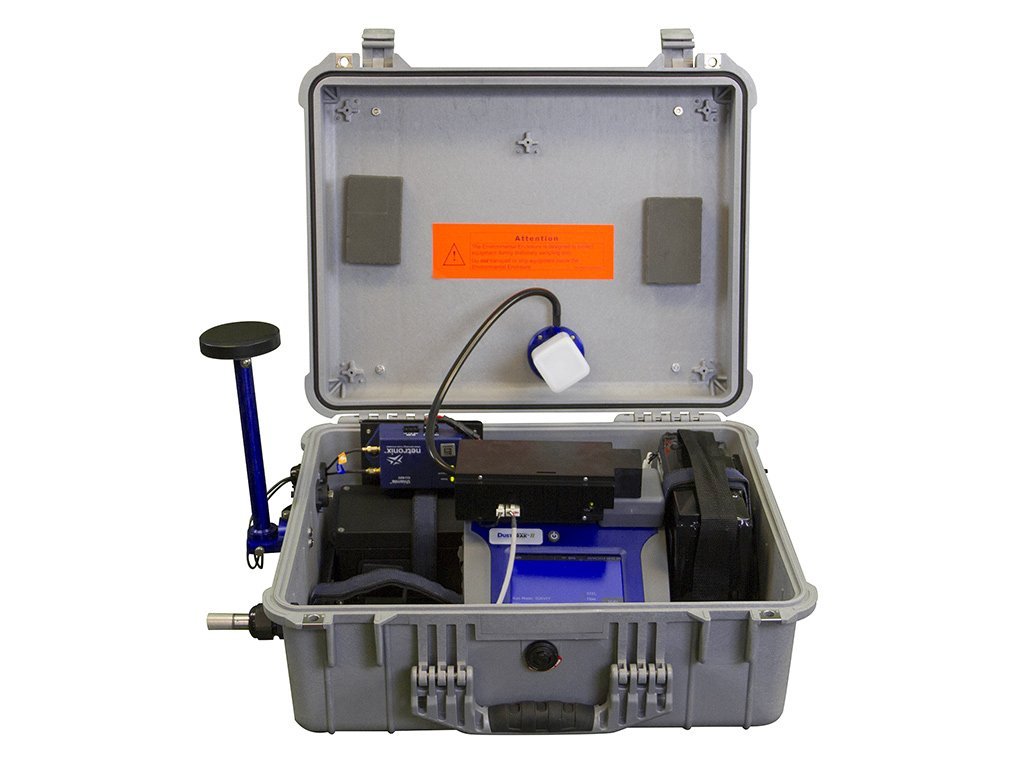

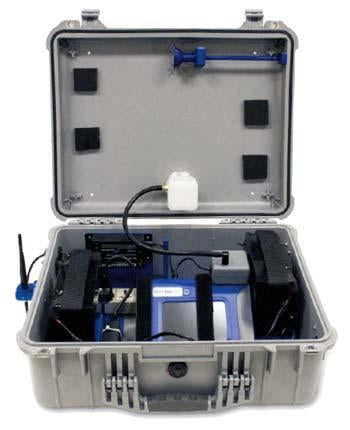

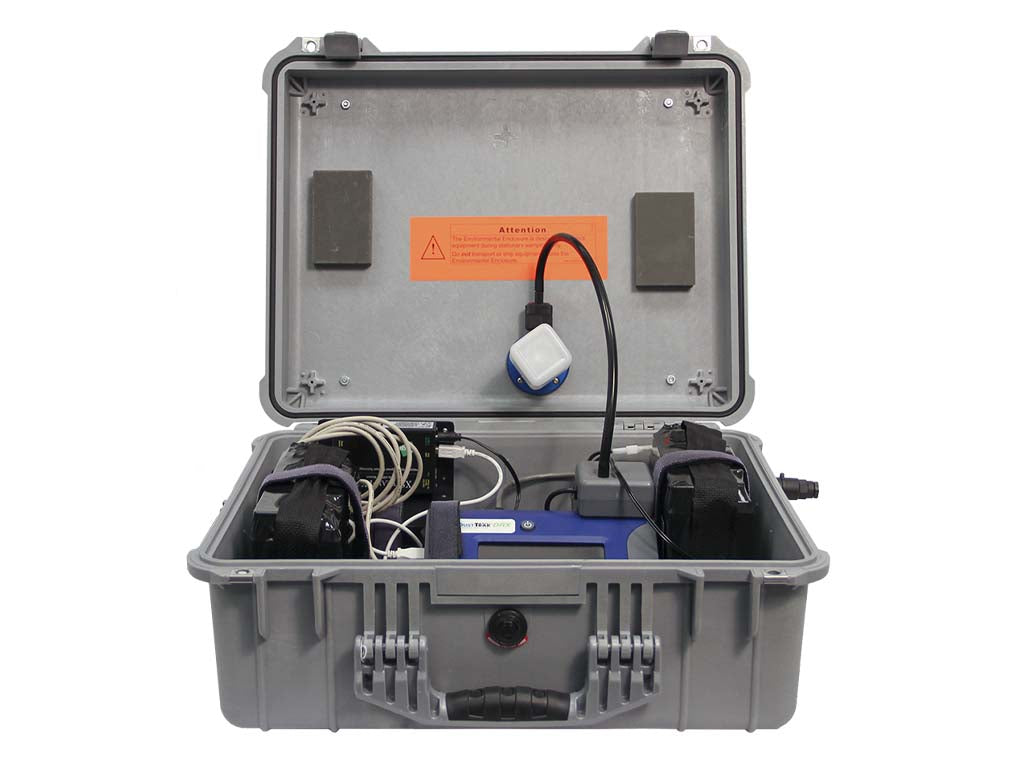

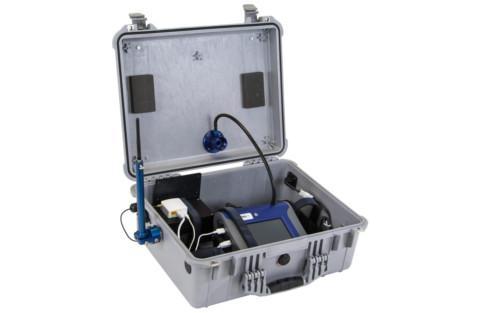

TSI DustTRAK Environmental Enclosure Model 8535

Pine Item #55099

The new TSI DUSTTRAK Environmental Enclosure Model 8535 can be used in conjunction with the DUSTTRAK aerosol monitor for many different applications. While its primary use is in outdoor applications it may also be advantageous in indoor industrial applications to provide additional security and protection for the instrument. The enclosure should be set up in a location where it can easily sample the aerosols of interest. It should be placed away from obstructions which may affect wind currents. The sampling inlet on the Environmental Enclosure samples most efficiently from 0 to 22 mph/0 to 36 kph.

Features:

Optional accessories: internal battery system heat shield solar power system wireless radio modems

360° omni-directional sampling inlet specifically designed to sample efficiently in a broad range of wind conditions

Mount enclosure to a standard survey tripod equipped with a 5/8

Water trap that prevents precipitation from entering the instrument

Field portable

Secure method of deploying the DustTrak aerosol monitor and its accessories

Applications:

Camp Systems

Occupational Hygiene

Outdoor environmental monitoring

Baseline trending and screening

Engineering Control evalutations

Remote Monitoring

Process Monitoring

Emission Monitoring

Equipment available for both rental and purchase

Request a Quote

Website Disclaimer

Specifications Manuals, Data Sheets & Software

Specifications

Technical Specifications

Wind Speed	0 to 22 mph (0 to 36 kph)
Operating Temperature	32 to 120°F (0 to 50°C)
Storage Temperature	-4 to 140°F (-20 to 60°C)
Internal Battery Pack	12 VDC, 22 Ah
Battery Run-time: DustTrak II/DRX with External Pump	21 - 24 hours (typical)
Dimensions	US: 8.1 x 16.9 x 20.6 in. Metric: 38 lb
Weight	US: 21 x 43 x 52 cm. Metric: 17 kg
