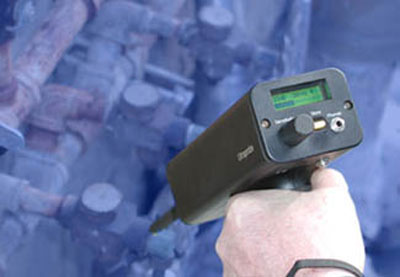

Ultraprobe 9000 Acoustic Leak Detector
The Ultraprobe® 9000 is a digital ultrasonic inspection, information, storage, and retrieval system that’s versatile and easy to use (most operators learn within 15 minutes!). This Ultraprobe® will help move you through inspections quickly. Whether used for trouble-shooting or a pre-planned route, data is easily viewed on the display panel and stored with the push of a button.
The easy-to-read display panel offers calibrated decibel readout and a 16-segment bar graph, which instantly registers sound intensity changes and simultaneously registers peak hold as you scan.
Features:
Open Platform Software
Interchangeable Modules
Frequency Tuning
Spin and ClickTM Technology
Ultratrend Sound Filtration
120 dB Dynamic Range
Acoustic Isolating Headphones
Environmentally friendly rechargeable
batteries
Easy interface for most Vibration
Analyzers including SKF, ENTEK, DLI, CSI, DI
Applications:
Bearing Conditions
Rubbing Conditions
Cavitation
Gears/Gear Boxes
Pumps/Motors
Lack of Lubrication
Technical Specifications
| Construction: | Hand-held pistol type made with coated aluminum and ABS plastic |
| Circuitry: | Solid State SMD Digital Circuitry with temperature compensation |
| Frequency: | 20 kHz to 100 kHz (tunable in 1 kHz increments) |
| Response Time: | < 10 ms |
| Display: | 16 x 2 LCD with LED Backlight |
| Memory: | 400 storage locations |
| Battery: | NiMH Rechargeable |
| Operating Temperature: | 0°C to 50°C (32°F to 122°F) |
| Outputs: | Calibrated heterodyned output, decibel (dB) frequency USB data output |
| Probes: | Trisonic Scanning Module and Stethoscope Module |
| Headset: | Deluxe noise attenuating headphones for hard hat use |
| Indicators: | dB, Frequency, Battery Status and 16 Segment Bar Graph |
| Sensitivity: | Detects 0.127 mm (0.005”) diameter leak @ 0.34 bar (5 psi) at a distance of 15.24 m (50 ft.) |
| Threshold: | 1 x 10⁻² std. cc/sec to 1 x 10⁻³ std. cc/sec |
| Dimensions: | Complete kit in Zero Halliburton aluminum carrying case 47 x 37 x 17 cm (18.5” x 14.5” x 6.5”) Pistol Unit: 0.9 kg (2 lbs.) Complete carrying case: 6.4 kg (14 lbs.) |
| Weight: | 1 kg (2 lbs.) |
| Warranty: | 1-year parts/labor standard 5 years with completed warranty registration card |
| Display Modes: | Real Time, Snap Shot, Peak Hold and Storage Display *depends on leak configuration **specify Ex rating if needed at time of order |
