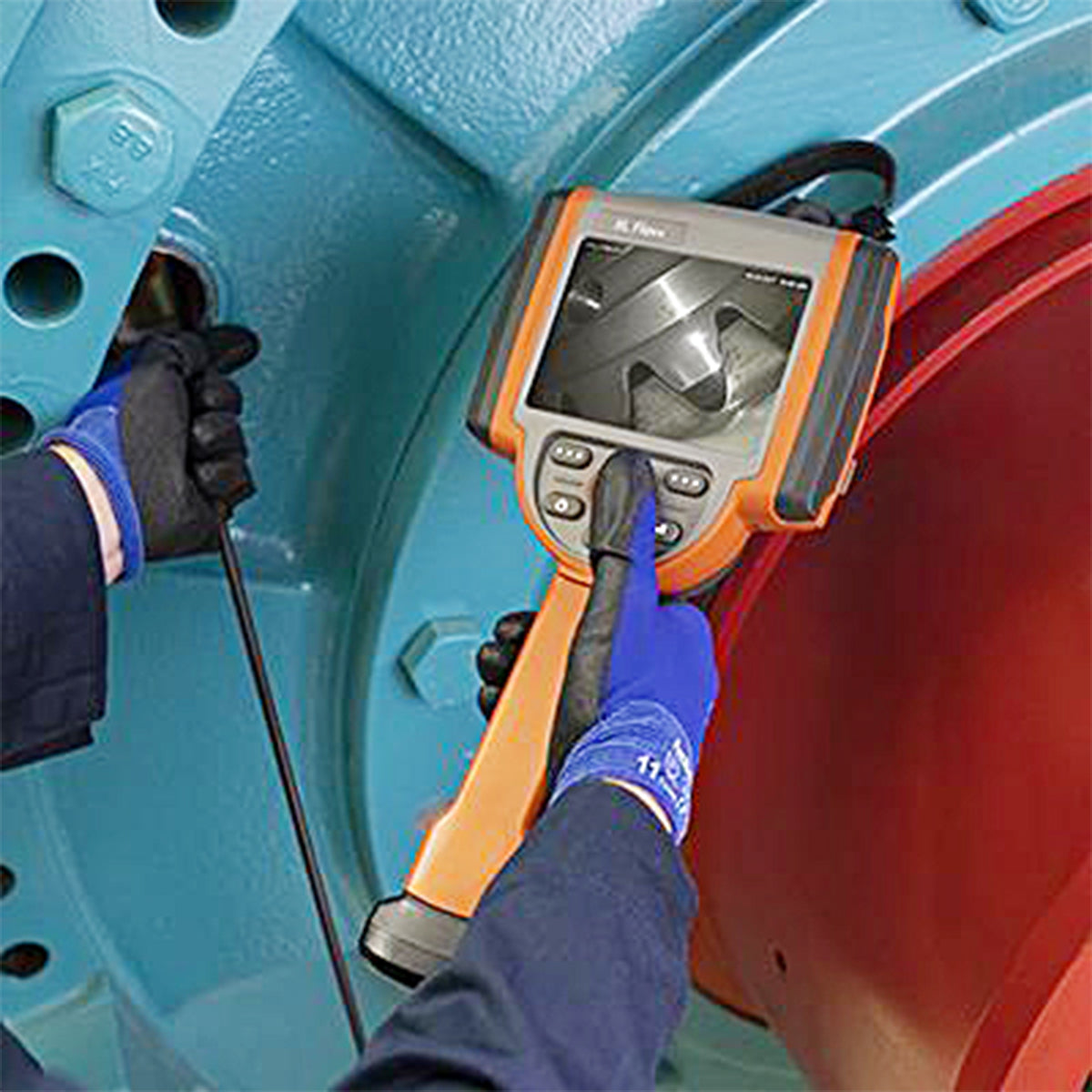

XL Flex Video Borescope System (6.1mm x 8.0m)
The XL Flex and XL Flex+ VideoProbes provide unmatched image quality and powerful light output to boost the probability of detection (POD) and speed up workflow. Rugged durability lowers your maintenance costs. Stereo measurement lets you evaluate defects in depth. And expert support from Waygate Technologies gives you peace of mind. All in a lightweight, portable, and easy-to-use device.
Now featuring 16GB of memory and an upgraded 5” LCD screen on the XL Flex+. The new XL Flex+ display is 85% larger and 3X brighter, with crystal clear image quality unmatched in the industry. Paired with advanced optics and powerful light output, that means sharper images right on your device. Because when you can see clearly, you improve POD, speed up your workflow, and deliver results with confidence.
Features:
Learn quickly. The intuitive interface includes Menu Directed Inspection (MDI) 2.0, an application to guide users through inspections and organize results for simpler reporting
Get accurate results, fast. Complete efficient, precise inspections with unmatched image quality, plus a 5” LCD screen on the XL Flex+.
Believe it when you see it. Reduce eyestrain with powerful light output and a 3X brighter display in the XL Flex+.
Evaluate defects in depth. Stereo measurement provides accurate analysis as you work.
Applications:
Aviation - Gas turbine engine inspection, Compressor, Combustion, Chamber, Turbine
Power Generation - Hydroelectric, Wind, Thermal, Nuclear
Automotive
Oil, Gas, and Chemical
Security
| Operating Environment | Camera | |||
| Tip operating temp: | -25°C to 100°C (-13°F to 212°F) Reduced articulation below 0°C (32°F) | 4.0 mm (0.157 in) diameter probes | ||
| System operating temp: | -20°C to 46°C (-4°F to 115°F) LCD requires warm-up period below 0°C (32°F) | Image sensor: | 1/10 inch Color SUPER HAD CCD camera | |
| Storage temperature: | -25°C to 60°C (-13°F to 140°F) | Pixel count: | 290,000 pixels | |
| Relative humidity: | 95% max, non-condensing | Housing: | Titanium | |
| Waterproof: | Insertion tube and tip to 14.7 psi (1 bar, 10.2 m of H2 O, 33.5 ft of H2 O) | Camera | ||
| Environmental: | XL Flex: Tested to IP55 XL Flex+: Tested to IP65 | 6.1 mm (0.242 in) and 8.4 mm (0.331 in) diameter probes | ||
| Image sensor: | 1/6 inch Color SUPER HAD™ CCD camera | |||
| System | Pixel count: | 440,000 pixels | ||
| Wheeled case: | 54.9 x 34.6 x 23.6cm (21.61 x 13.62 x 29) | Housing: | Titanium | |
| System weight: | In case: XL Flex: 6.50 kg (14.30 lb) XL Flex+: 8.39 kg (18.5 lb) Without case: XL Flex: 1.73 kg (3.8 lb) XL Flex+: 1.98 kg (4.37 lb) | Software | ||
| Power (Lithium Ion battery) | 8.4 V, 38 Wh (2 hour) 8.4 V, 75 Wh (4 hour) | Operating system: | Real-time multi-tasking operating system | |
| Power supply: | AC Input: 100-240 VAC, 50-60 Hz, 1.5 A Max DC Output: 9.5 V, 6.0 A | User interface: | Simple drop-down menu-driven operation Menu navigation using articulation joystick | |
| Construction: | Polycarbonate housings with integrated Versalon™(JP) bumpers | File manager: | Embedded file manager software supporting: File & Folder creation, naming, deleting Store to internal Flash (C:\) or USB ThumbDrive Copy between USB and C:\ | |
| Dimensions: | 9.53 x 13.34 x 34.29 cm (3.75 x 5.25 x 13.50 in) | Measurements: | StereoProbe and Comparison | |
| LCD monitor: | XL Flex: Integrated transflective 9.40 cm (3.70 in) active matrix VGA color LCD with XpertBright, 640 x 480 resolution. XL Flex+: Integrated 12.7 cm (5.0) active matrix. VGA color LCD, Transmissive display. | MDI software (optional): | Provides user defined guided inspection Creates DICONDE compatible inspection files Creates MS Word® compatible inspection reports | |
| Joystick control: | 360° All-Way tip articulation with XpertSteer, bump gesture, menu access and navigation | Audio data: | PC compatible (.AAC) file format | |
| Button set: | Access user functions, measurement and digital functions | Image control: | Invert, Zoom (5X digital) Image Capture and Recall | |
| Audio: | Integrated 2.5 mm headset/microphone jack | Digital zoom: | Continuous (5.0X) | |
| Internal memory: | XL Flex: 4 GB Flash memory XL Flex+: 16 GB Flash memory | Image formats: | Bitmap (.BMP), JPEG (.JPG) | |
| Data I/O ports: | Two USB® 2.0 ports | Video format: | MPEG 4 | |
| Video port: | VGA Video Out | Text annotation: | Built-in full screen text overlay generator Supports international language character sets 100 text line capacity | |
| Brightness control: | Auto and Variable | Graphic annotation: | User placement of arrows | |
| Illumination type: | White LED | Articulation control: | “Steer & Stay” articulation lock/fine articulation Tip “Home” return to neutral forward-tip orientation Userselectable fine or coarse control XpertSteer probe articulation offers quick steering responsiveness for tight probe control – bump steering enables slight adjustments to probe position | |
| Long exposure: | Via auto and manual mode | Software updates: | Field updateable via USB ThumbDrive | |
| White balance: | Factory default or user defined | Languages: | English, Spanish, French, German, Italian, Russian, Japanese, Korean, Portuguese, Chinese, Polish |
