Cygnus 6+ PRO Multi-Mode Ultrasonic Thickness Gauge

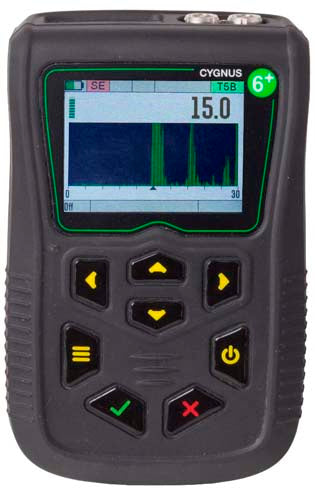

The NEW Cygnus 6+ ultrasonic thickness gauge has a large front LCD color display plus an end mounted OLED display, offering maximum versatility.
The gage includes comprehensive data logging, A-Scan, and B-Scan display, automatic and manual gain control, and Bluetooth connection.
The instrument has three measurement modes:
- Multiple-Echo to provide extremely accurate measurements while ignoring protective coatings up to 20 mm thick
- Echo-Echo for measurements on painted metals but with heavy back wall corrosion/pitting
- Single-Echo for measurements on uncoated surfaces with the heavy front face and/or back-wall corrosion and attenuative materials such as cast metals or plastics/composites.
Designed for the harshest of environments, with a simple to use keypad, intuitive menus, and a color LCD display that can be viewed in all lighting conditions.
The twin shot injection molded enclosure has a soft but durable TPE outer skin which is both comfortable and robust while the inner shell is strong, keeping the electronics totally sealed from the outside world. Having passed the stringent US Military Standard 810G environmental tests, this new housing represents toughness and reliability.
Features:
Multiple-Echo for reliable, accurate through coating measurements
Single-Echo and Echo-Echo measuring modes with twin crystal probes for extreme corrosion and back wall pitting
A-scan display
Real time B-scan display
Manual and automatic gain control
Comprehensive data logging capabilities
Bluetooth connectivity
MSI™ (Measurement Stability Indicator) used in Single‑Echo and Echo-Echo measurement modes

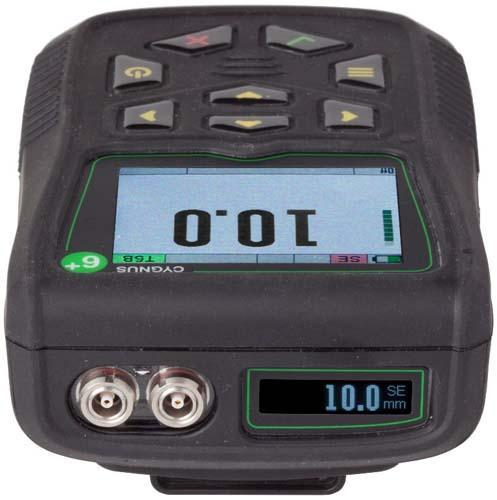

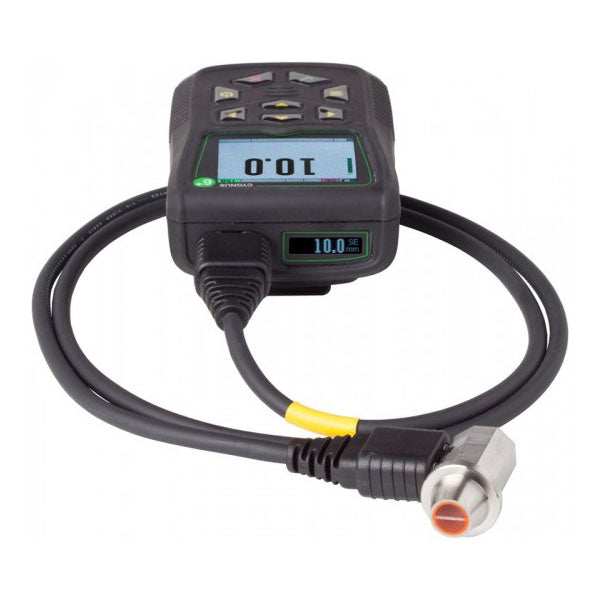

Dual display – large front LCD display and NEW high durability end-mounted LCD display with grayscale setting for bright sunlight
Deep-coat mode, measure through coatings up to 20 mm thick
Wrist mountable
Minimum / maximum measurement limit functions with visual and vibrate alert
Intuitive easy to use menu
Extremely rugged enclosure – shock and impact to US MIL STD 810G
Environmental sealing to IP67 – US MIL STD 810G
Cygnus echo strength bars to assist quick measurements
Buttons integral with the TPE moulding and designed for min 100,000 depressions.
| Materials | Sound velocities between 2000 - 9000 m/s (0.079 - 0.35 in/ms) - covers virtually all common engineering materials |
| Accuracy | ±0.1 mm (±0.004) or 0.1% of thickness measurement whichever is greatest when calibrated in accordance with Cygnus Instruments calibration |
| Resolution | Multiple-Echo mode - 0.1 or 0.05 mm (0.005" or 0.002") / Single-Echo and Echo-Echo modes - 0.01 mm (0.0004") |
| Probes | Single crystal probes:\n6 mm (¼) - 5.0 MHz (S5A)\n13 mm (½) - 2.25 MHz (S2C (standard))\n3.5 MHz (S3C) or 5.0 MHz (S5C)\n19 mm (¾) - 2.25 MH |
| Measurement Range in Steel | Single crystal probes:\n3 - 250 mm (0.120\" - 10.00\") with 2.25 MHz probe (S2C/D)\n2 - 150 mm (0.080\" - 6.000\") with 3.5 MHz probe (S3C)\n1 - 50 |
| Connector | Twin Lemo 00 |
| Power | 3 x AA batteries |
| Battery Life | 10 hours minimum |
| Electronics | Dual channel pulser |
| Display | 2.4" quarter VGA LCD and end-mounted OLED (rotatable) |
| Display Info. | Thickness value A-scan B-scan and cross-section scan |
| Size | 132 mm x 82 mm x 34 mm (5.20" x 3.23" x 1.34") |
| Weight | 300 grams (10.58 oz) inc. batteries |
| Operating Temp. | -10°C to 50°C (14°F to 122°F) |
| Data Logging | Capacity for up to 5000 points including A-scans |
| Computer Software | CygLink allows remote logging and viewing of A-scan graphs. Survey and report generation to PDF file. Graphic analysis of data and statistic |
| Environmental Rating | IP67 MIL STD 810G Method 501.6 (high temp +55°C) MIL STD 810G Method 502.6 (low temp -20°C) MIL STD 810G Method 507.6 (humidity 95%) MIL STD |
| Shock and Impact | MIL STD 810G Method 514.7 (vibration - 1 hour each axis)\nMIL STD 810G Method 516.7 (shock 20g - 11ms half sine shock pulse 40g 11ms in each |
| Compliance | CE British Standard BS EN 15317:2013 (specification for the characterization and verification of ultrasonic thickness measuring equipment) |
| Environmental | RoHS WEEE Compliant |
