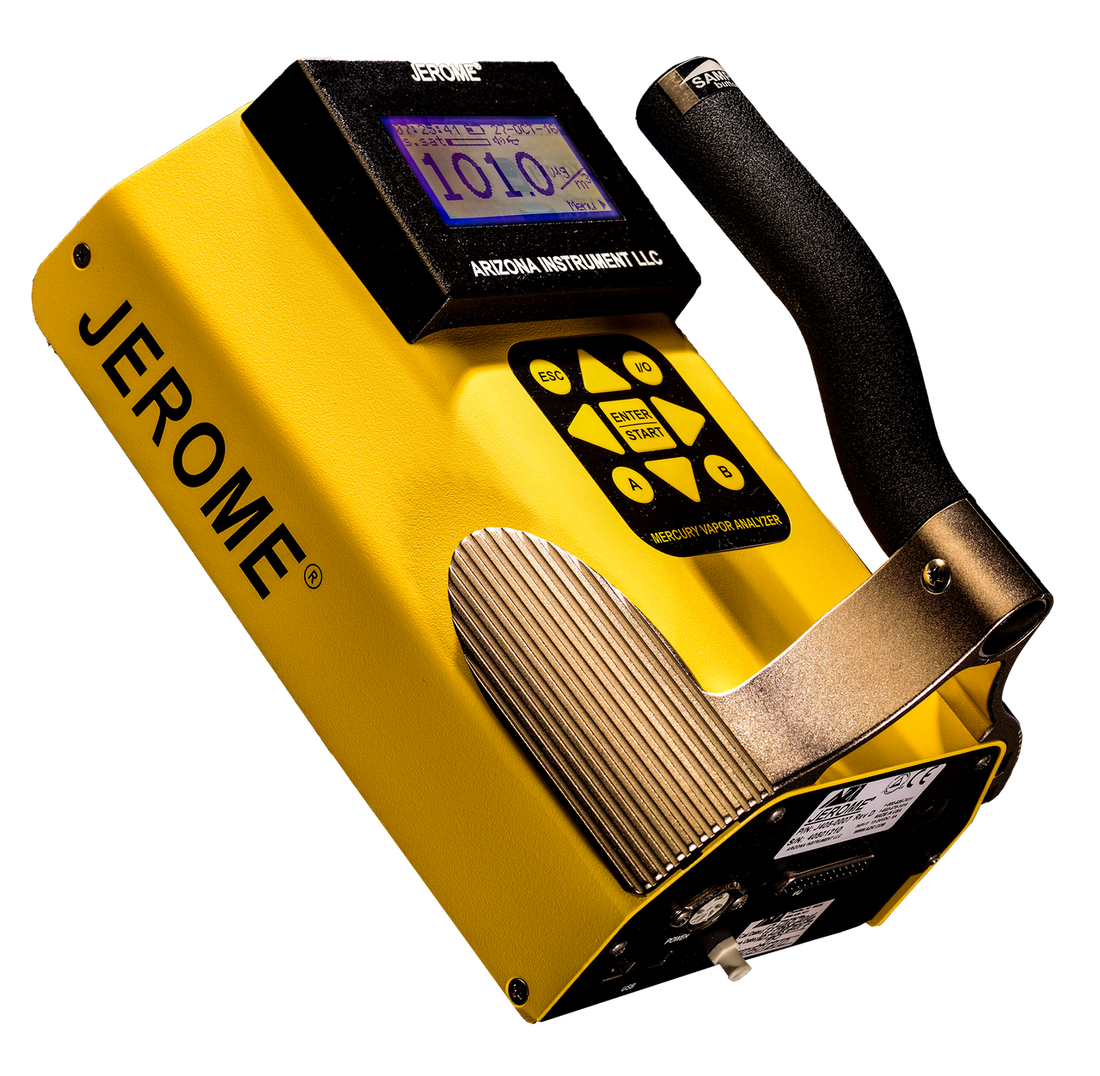

Jerome J405 Mercury Vapor Analyzer
Arizona Instruments

Jerome J405 Mercury Vapor Analyzer

Pine Item #51174

A development of existing models in our rental fleet, the J405 Mercury analyzer from Jerome uses proven technology to provide greater accuracy and usability for toxic gas and vapor detection. Lighter improved ergonomics, a larger display as well as improved data storage, retrieval and communications, are just a few of the J405's new features. The perfect hire instrument for a wide range of mercury-related applications, typical users might include: Environmental consultants, Health & Safety managers, Emergency Response Teams, Hazardous Cleanup operatives and Waste Recycling monitors to mention but a few.

Features:

Ultra Low-Level Detection: The Jerome J405 can detect mercury vapor in air at levels as low as 0.5 µg/m3 with a resolution of 0.01 µg/m3.

Gold Film Sensor: Validated in the field and in the lab for over 35 years, our proprietary gold film sensor ensures repeatable results across a wide range of applications.

Versatile: The J405 is in active use by many environmental agencies, industrial hygienists, miners and first response teams across the world.

Survey Mode: While in survey mode, the J405 continuously draws in samples of air to help users locate the source of mercury contamination and enable corrective action to be taken.

Durable: Housed in a light, ergonomically designed, durable metal casing, the J405 sets a new precedent for portable, low-level mercury monitors.

Intuitive Interface: The J405 offers simple, menu-driven operation as well as easy-to-understand diagnostics and error detection. It does not require PC software and comes with a USB interface for easy data transfer.

Applications:

Ambient air analysis

regulatory compliance

Quality Control

Scrubber Efficiency Testing

Mercury Vapor Source Detection

Leak Detection

Quantity must be 1 or more
Equipment available for both rental and purchase
Request a Quote

Specifications

Technical Specifications

Resolution0.013 µg/m³
Detection Range0.5 to 0.999 µg/m³
Precision10% RSD @ 1µg/m³
Accuracy± 5% at 1µg/m³
Response Time10 seconds
Flow Rate\n750 cc/min
Temperature0 - 40ºC
InterfacesUSB Host USB Slave
PowerRechargeable NiMH (6 hours) or AC 12V
DimensionsUS: 11 x 6 x 6.5 in. Metric: 280 x 160 x 170mm
WeightUS: 5 lb. Metric: 2.3kg
